INTRODUCTION
The 358 fence system can be customized and upgraded into a ClearView or ClearVu-style fence, featuring a 3D bending design, making it ideal for South Africa, Central Africa, or any other region in need of high-quality and high security ClearView/ClearVu fencing solutions.
This fence system is composed of cold-formed square shaped posts and 358 welded mesh, offering exceptional resistance to riots, cutting, and disassembly. The integrated design of the posts connects securely to the mesh through dedicated interlocks and anti-theft bolts, ensuring adaptability to uneven terrain and versatile installation angles. The product supports flexible installation methods, including push-type assembly or sequential installation of posts followed by the mesh, providing a convenient and efficient setup process.
FEATURES
Security
The reinforced post is connected to the mesh through anti disassembly connectors, which has strong anti-theft function;
358 high-density mesh, anti riot, anti cutting, and anti disassembly;
The overall design of the fence has no focal points, providing excellent anti climbing performance;
Durability
The combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray anti-corrosion coating technology ensures the extraordinary service life of the product;
Practicality
Adapt to uneven terrain and installation from different angles;
Easy to master, simple and fast, and cost-effective.
COMPONENTS & PARAMETERS
Mesh
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 1500/2000/2500/3000 |
| Mesh Width(mm) | 2000/2500 |
| Wire Diameter(mm) | Ø4.0/Ø4.5 |
| Vertical Wire Spacing(mm) | 76.5/100 |
| Horizontal wire spacing (mm) | 12.5 |
| Material | Q195 |
| Cover | ABS |
| Zn coating (g/㎡) | 80-120 |
| Color | RAL Color Series |
| Name | Parameter |
|---|---|
| Size(mm) | 60 * 90/100*120 |
| Thickness(mm) | 2.0/2.5/3.0 |
| Height(mm) | 1000-3000 |
| Zn coating(g/㎡) | 80-120 |
| Material | Q235 |
| Color | RAL Color Series |
| Cover | ABS |
Post
Connection
The integrated design of the post is connected to the mesh with dedicated interlocks and anti-theft bolts, which has strong anti-theft function.
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
Surface Technology

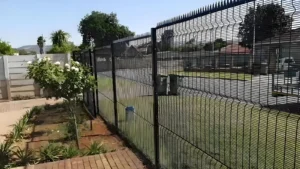

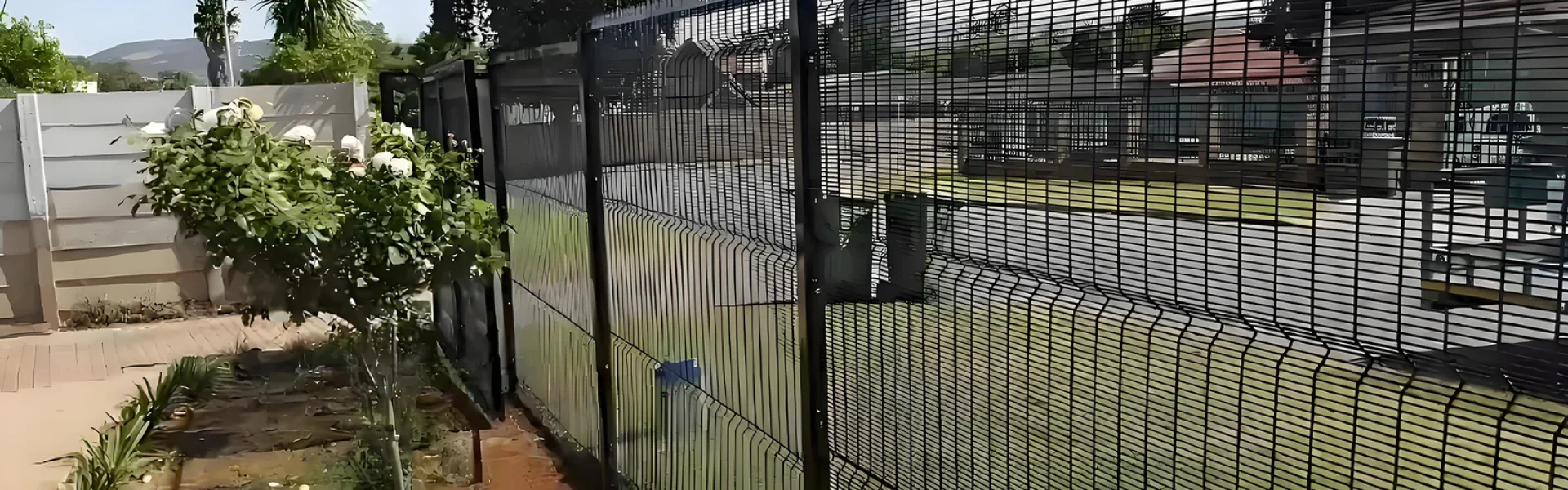

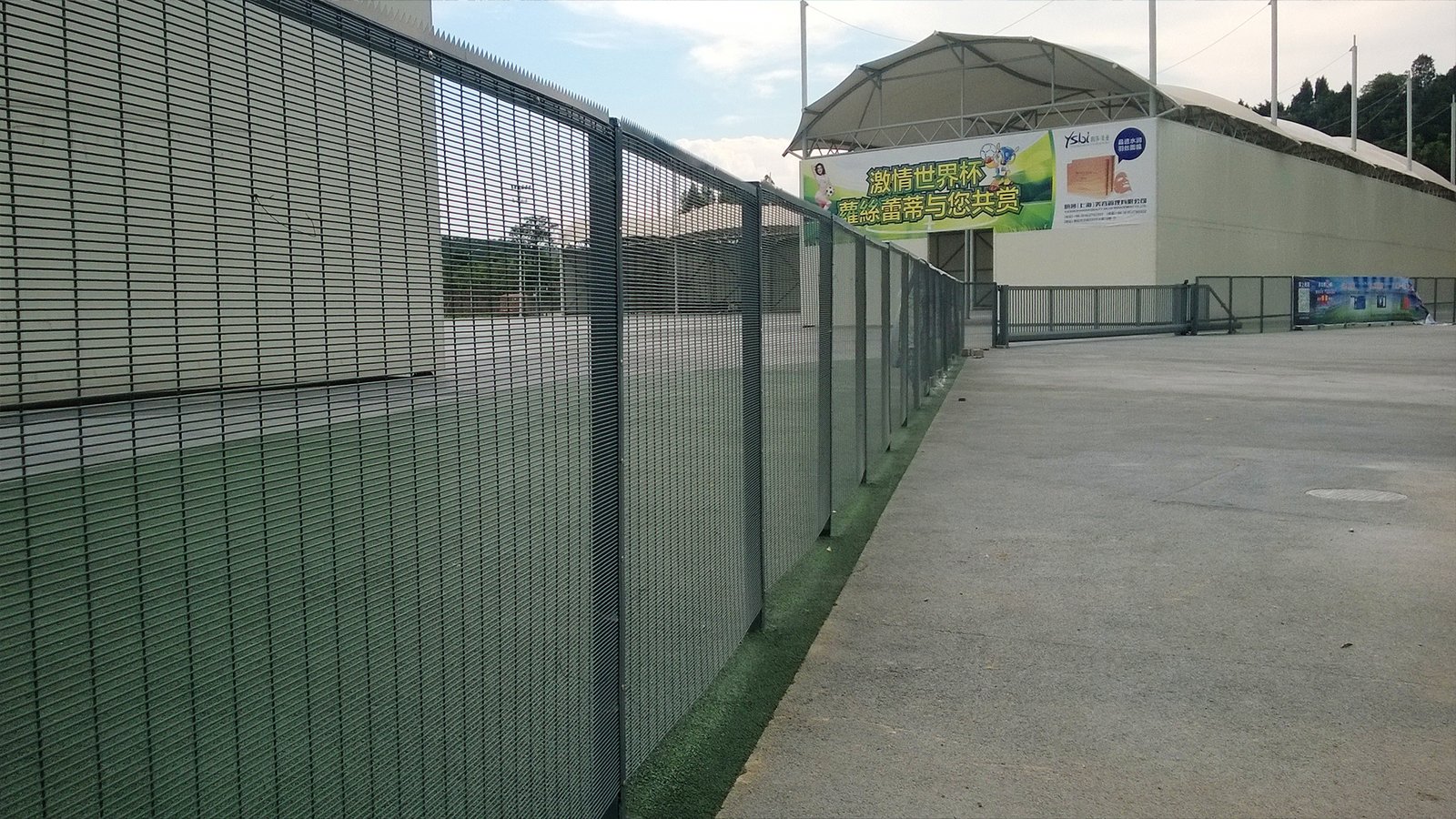

PROJECTS OF APPLICATION SCENARIOS
DOWNLOAD DOCUMENT
 | 358 Metal Fence Mesh & Profiled Posts B-PGN&GP-1510 |
| 358 Metal Fence Mesh & Profiled Posts B-PSN&GP-1810 |
| 358 Metal Fence Mesh & Profiled Posts B-PSN&GP-2010 |
| 358 Metal Fence Mesh & Profiled Posts B-PSN&GP-2500 |
| 358 Metal Fence Mesh & Profiled Posts B-PSN&GP-3010 |
