INTRODUCTION
Constructed with a seamless, one-piece curved steel (profiled ) post A and a 3D single horizontal wire welded mesh panel, this fence showcases a refined, elegant design with fluid, dynamic lines. The integrated post buckle groove securely joins the mesh without the need for additional connectors, providing a stable and seamless connection. Its versatile design effortlessly adapts to uneven terrain and various installation angles. With a push-fit installation method, assembly is quick, convenient, and efficient, combining both practicality and ease of use.
FEATURES
Safety
The post buckle groove structure seamlessly connects with the mesh panel, enhancing anti-tamper security.
The fence’s streamlined design eliminates focal points, providing exceptional anti-climbing performance.”
Durability
Made from hot-dip galvanized steel and coated with high-adhesion electrostatic polyester powder, the advanced anti-corrosion technology guarantees outstanding durability and an extended service life.
Practicality
Designed to conform to uneven terrain and varying installation angles, this fence offers easy assembly, quick installation, and exceptional cost-effectiveness.
COMPONENTS & PARAMETERS
Mesh Panel
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 1000-2430 |
| Mesh Width(mm) | 2500/3000 |
| Wire Diameter(mm) | Ø4.5/Ø5.0/Ø6.0 |
| Vertical Wire Spacing(mm) | 50/55/65 |
| Horizontal wire spacing (mm) | 100/200 |
| Material | Q195 |
| Zn coating(g/㎡) | ≥80 |
| Coating Thickness(μm) | ≥100 |
| Color | RAL Color Series |
| Name | Parameter |
|---|---|
| Size(mm) | 70 * 100 |
| Thickness(mm) | 1.2 |
| Material | Q235/DC51D |
| Height(mm) | 500-3000 |
| Zn coating(g/㎡) | ≥80-120 g/㎡ |
| Color | RAL Color Series |
| Cover | ABS |
Post
Connection
The post buckle groove structure integrates seamlessly with the mesh panel, eliminating the need for external connectors and providing enhanced anti-tampering protection.
The substrate is hot-dip galvanized with a zinc coating of ≥80 g/m², while the outer layer features a polyester electrostatic powder coating with a thickness of ≥100 μm. Customers can choose from more than 200 RAL color options.
In addition, the entire component is further hot-dip galvanized with a heavy-duty zinc coating of 550 g/m², ensuring exceptional durability and superior corrosion resistance.
Surface Technology

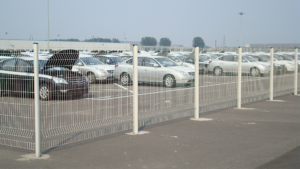

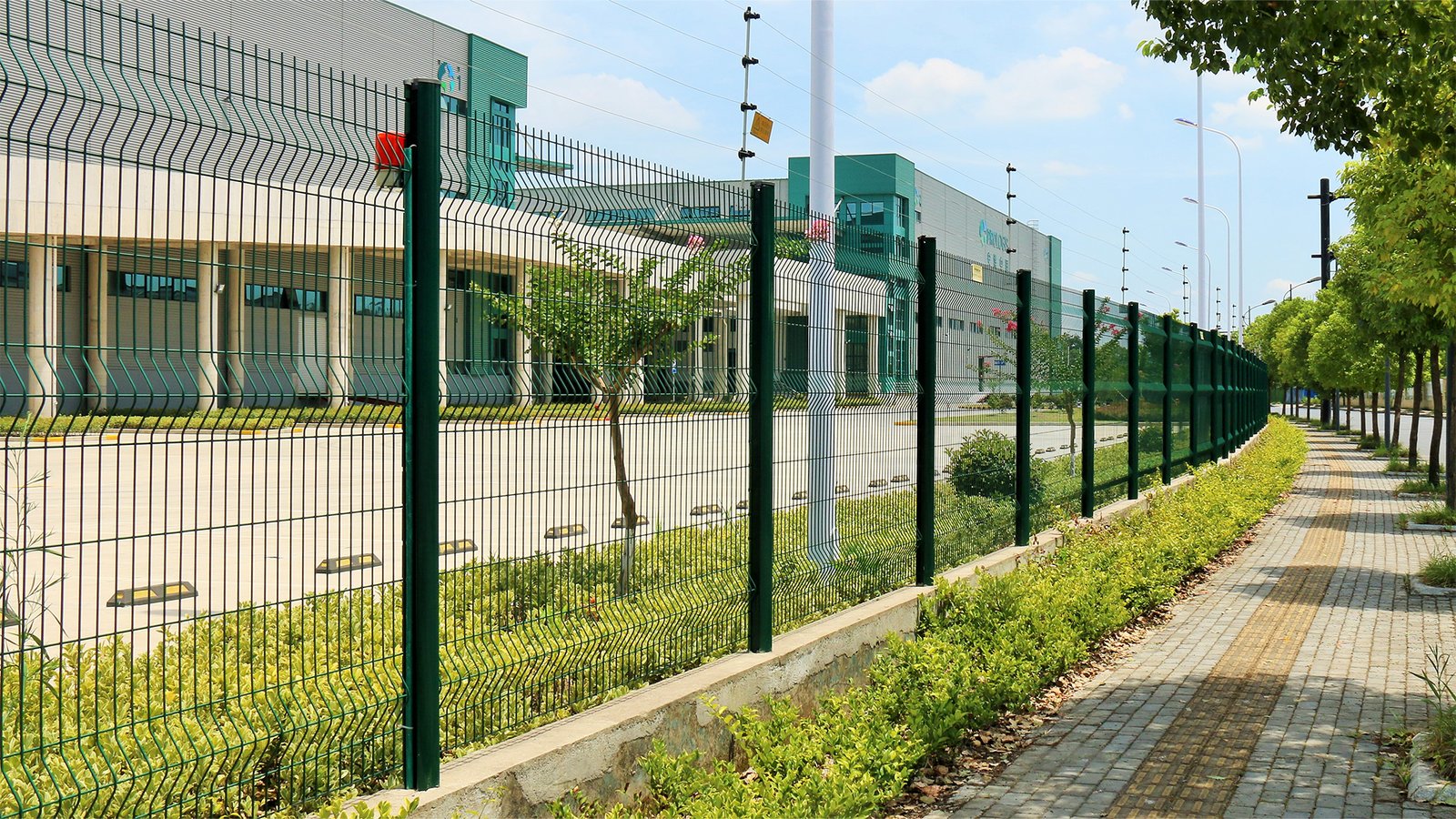

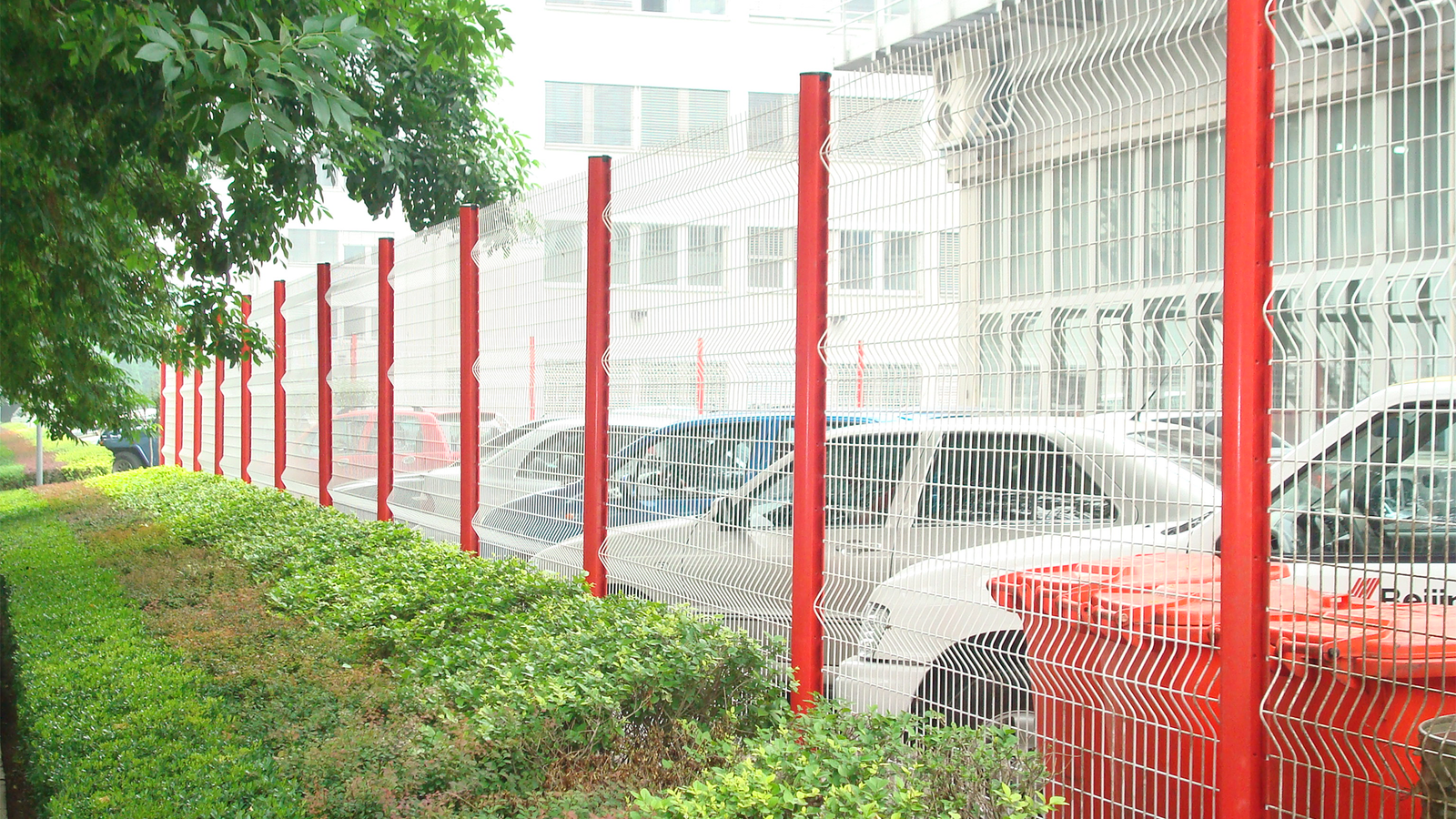

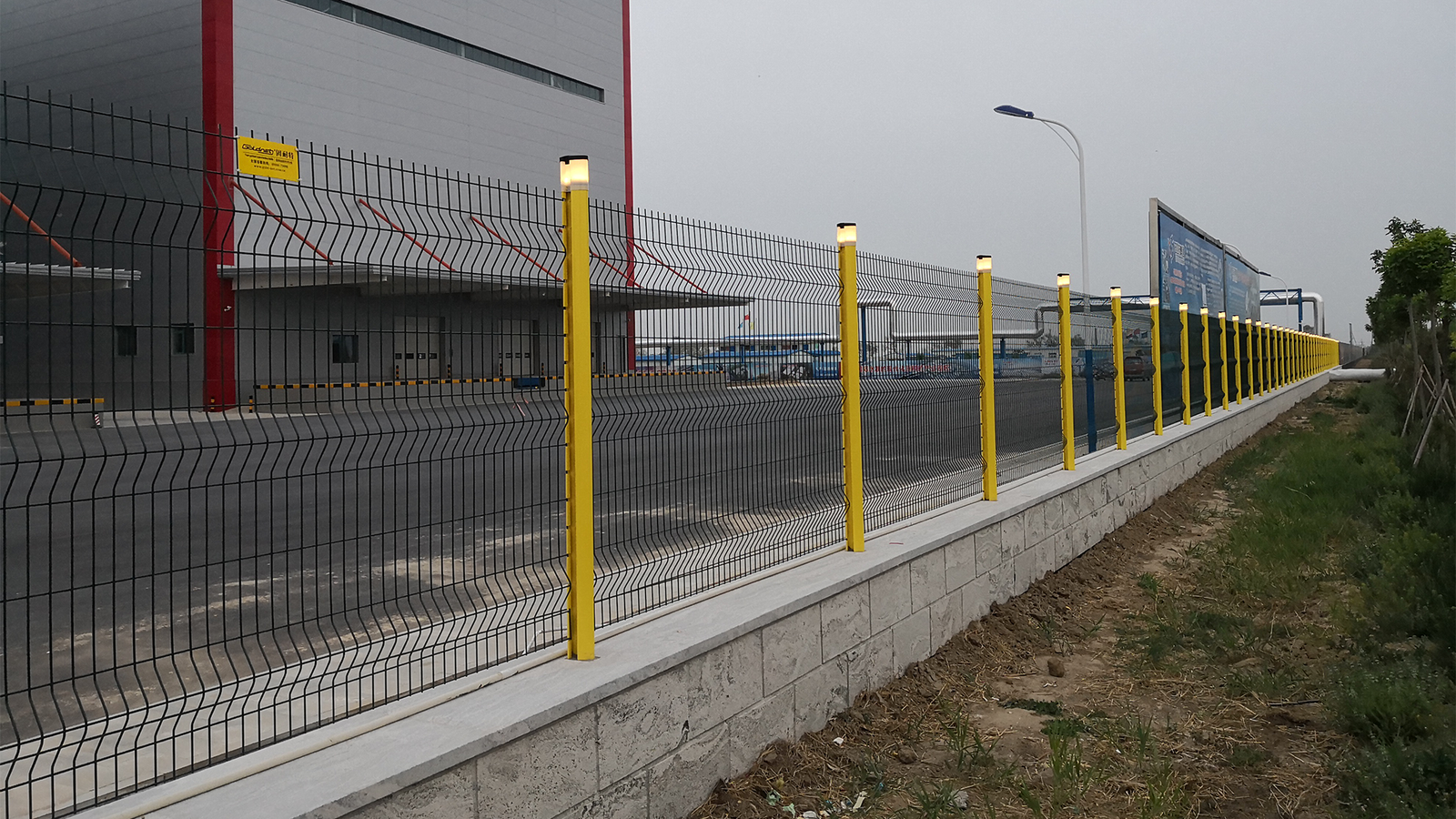

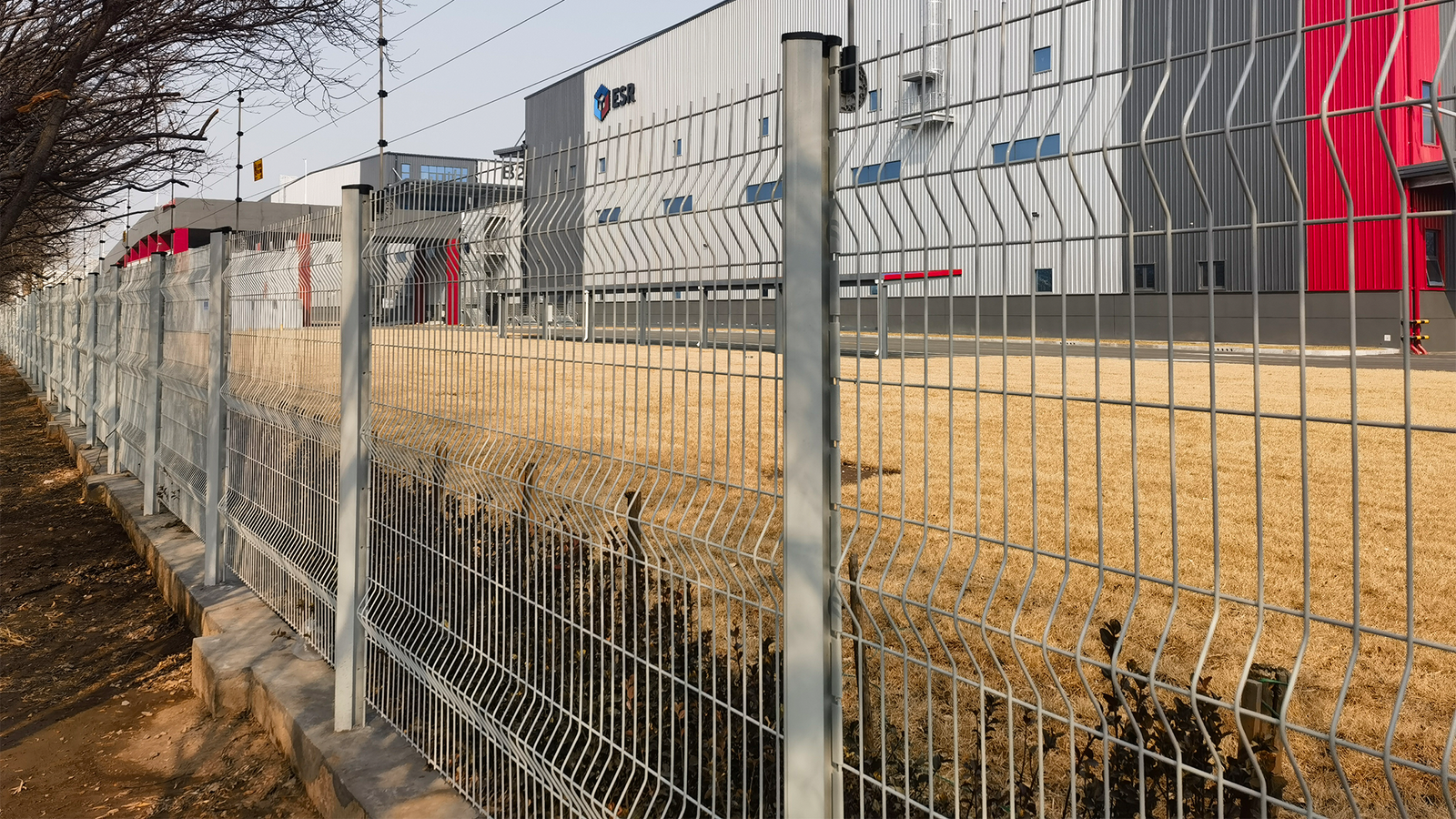

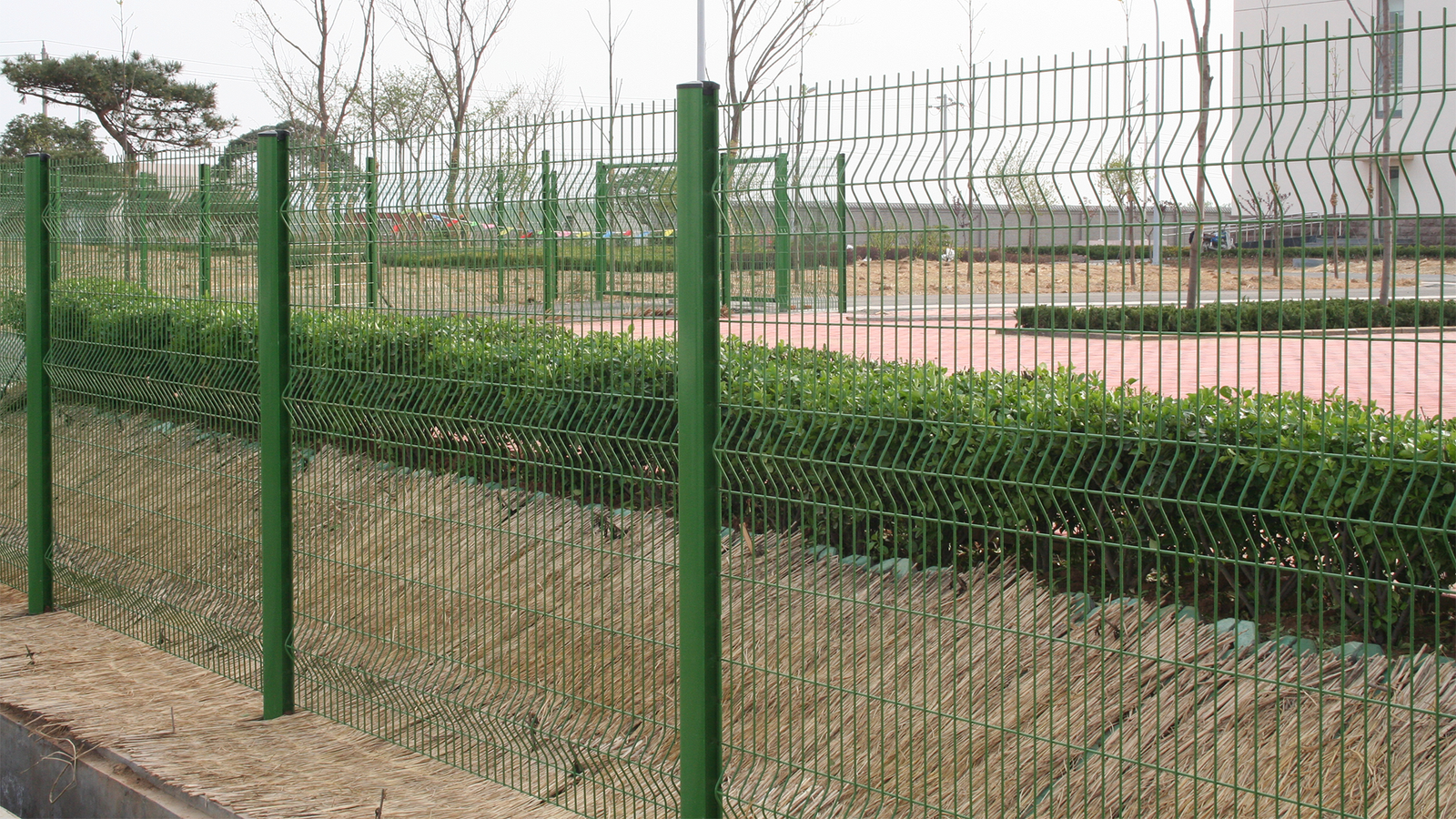

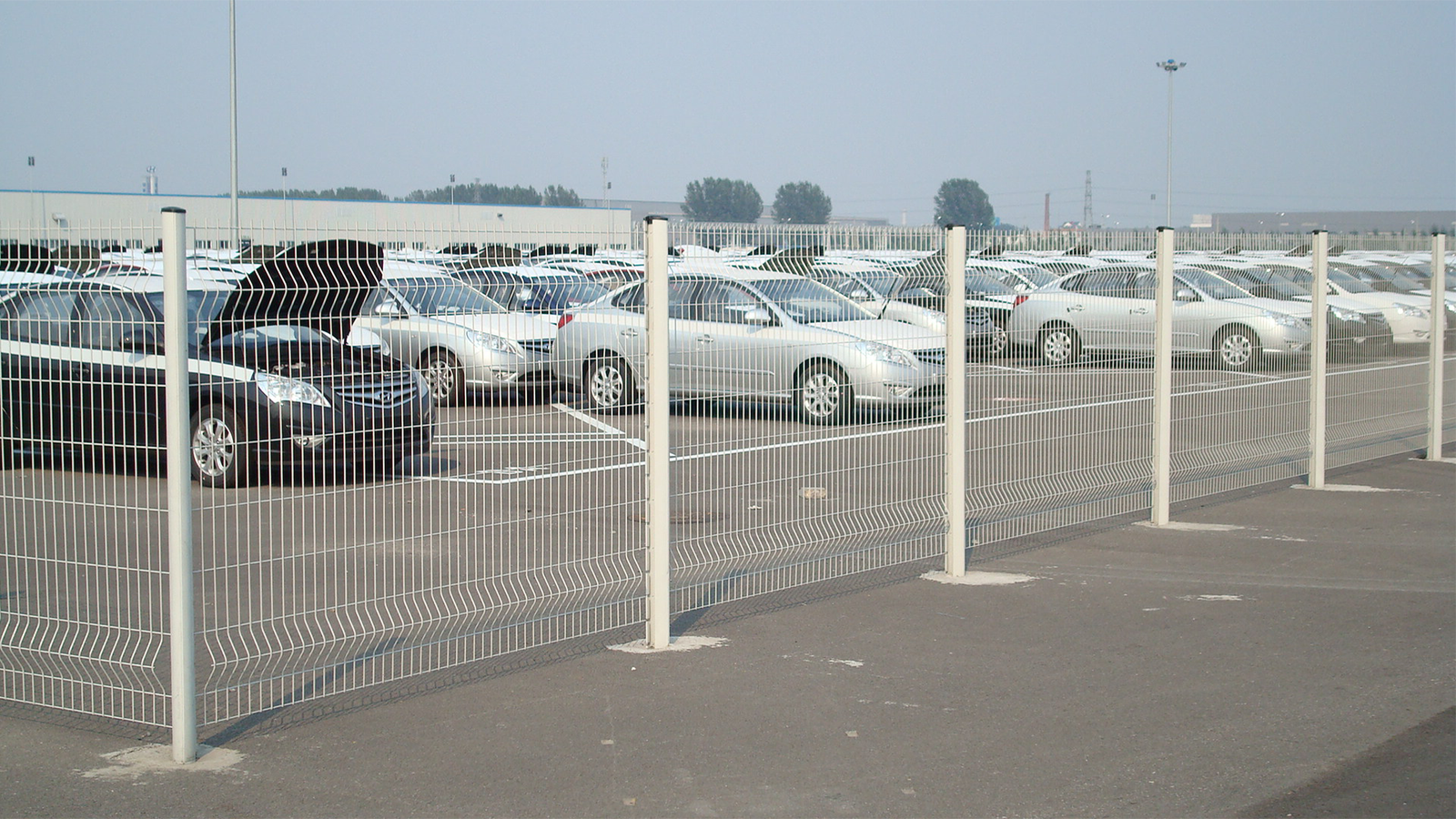

PROJECTS OF APPLICATION SCENARIOS
DOWNLOAD DOCUMENT
 | 3D Metal Fence Mesh & |
| 3D Metal Fence Mesh & |
| 3D Metal Fence Mesh & |
| 3D Metal Fence Mesh & |
